Create the Perfect Bathroom: Master the Plumbing Layout for Your Toilet with These Pro Tips!

When it comes to designing or renovating a bathroom, plumbing layout for a toilet is a critical aspect that cannot be overlooked. Whether it is for a residential or commercial setting, the way the toilet’s plumbing is installed can significantly impact the efficiency, aesthetics, and safety of the entire space. In this article, we will explore the different types of plumbing layout for toilets, factors to consider when choosing a layout, and the essential components of a toilet plumbing diagram.

Types of Plumbing Layout for Toilet

There are four main types of plumbing layouts for toilets: standard, wall-hung, back-to-wall, and corner layout.

The standard layout is the most common type of plumbing layout for a toilet. With this layout, the toilet bowl and tank are both visible, and the pipes are concealed within the walls or floors.

Wall-hung toilets are becoming increasingly popular in modern bathrooms. With this layout, the toilet is mounted on the wall, leaving the floor space underneath open, which can create the illusion of more space. This type of layout requires a sturdy wall frame to support the toilet.

Back-to-wall layout is suitable for those who prefer a seamless appearance between the toilet and the wall. The cistern and pipes are concealed within the wall, while the toilet bowl is mounted directly onto it.

Corner toilets are ideal for small or oddly shaped bathrooms. This layout saves space by placing the toilet bowl and tank in the corner, maximizing floor space.

Factors to Consider When Choosing Plumbing Layout for Toilet

Several factors come into play when choosing a toilet’s plumbing layout, including available space, plumbing system, cost and budget, and personal preference and style.

Available space: The size and shape of the bathroom will influence the type of plumbing layout that is most suitable. A smaller bathroom may require a wall-hung or corner toilet, while a larger bathroom may have more flexibility.

Plumbing system: The existing plumbing system can also impact the type of toilet plumbing layout because the fixtures and pipes must align with the existing system.

Cost and budget: The type of layout chosen can impact the cost of the project. Generally, wall-hung and corner toilets tend to be more expensive, while standard and back-to-wall layouts are more budget-friendly.

Personal preference and style: Finally, personal preferences and style also come into play when choosing a toilet plumbing layout. Some people may prefer a more modern and sleek look with a wall-hung or back-to-wall layout, while others may opt for a traditional look with a standard or corner toilet.

Plumbing Diagram for Toilet Layout

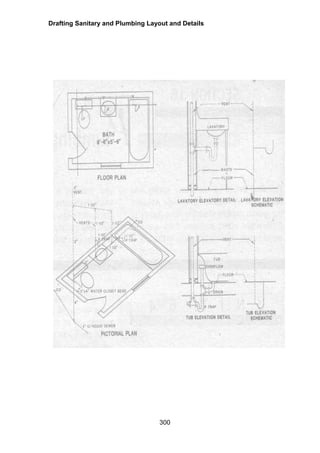

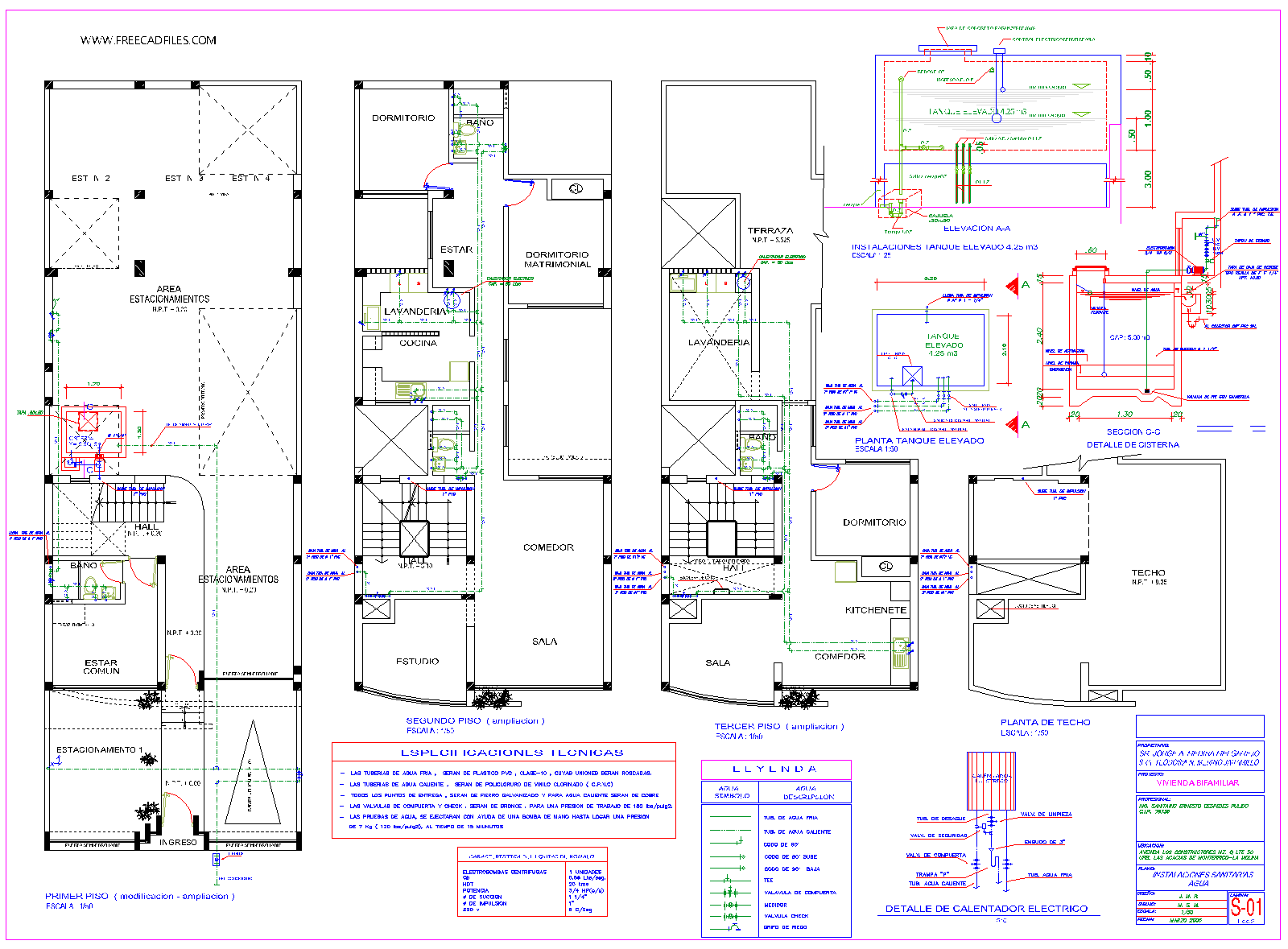

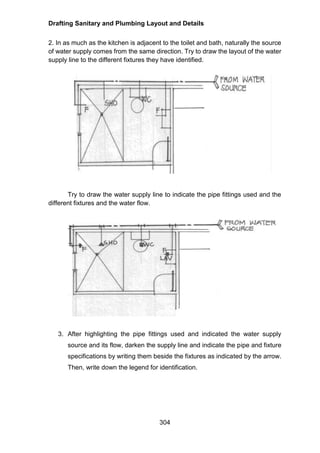

A toilet plumbing diagram is a guide that indicates the proper waste and venting requirements, water supply and drainage system, fixture placement and spacing, and required code compliance and permits. A toilet plumbing layout plan pdf or bathroom plumbing layout drawing pdf can be useful for visualizing the design.

Some of the essential components of a toilet plumbing diagram include:

Proper waste and venting requirements: A toilet must be connected to the wastewater system through a drainpipe, which should have adequate slope and venting to prevent clogs and ensure proper drainage.

Water supply and drainage system: A toilet must also be connected to a water supply system that provides enough water pressure to fill the cistern efficiently and ensure proper flushing.

Fixture placement and spacing: The layout of the fixtures, including the toilet, sink, and shower, should be strategic to create enough space for movement and comfort.

Required code compliance and permits: A toilet plumbing layout must comply with local building codes and regulations and may require specific permits to ensure that the installation is safe and up to code.

Conclusion

Choosing the right plumbing layout for a toilet can have a significant impact on the overall design and functionality of a bathroom. Understanding the different types of toilet plumbing layouts, the factors to consider when choosing a layout, and the essential components of a toilet plumbing diagram is crucial in ensuring that the toilet installation is safe, efficient, and aesthetically pleasing.
